EthaNa – Piloting the ethanolic native extraction of de-hulled rapeseed

Rapeseed is a valuable raw material. However, the conventional process for processing rapeseed uses high pressures and temperatures, which can damage the proteins, and often involves the use of environmentally harmful or even toxic chemicals. The mild EthaNa process applied at Fraunhofer CBP is considered a gentle alternative approach to also utilize other secondary ingredients and the rapeseed proteins. In the "EthaNa" project funded by the German Federal Ministry of Food and Agriculture (BMEL), eleven partners from industry and research have collaborated under the coordination of Fraunhofer CBP to demonstrate the new process for processing rapeseed in a pilot plant.

Piloting an innovative process for rapeseed processing

© Fraunhofer IGB
Rapeseeds for the extraction of recyclable materials and new products.
© Fraunhofer CBP
Schematic representation of the processing of rapeseed; on the left conventional process and on the right according to the concept of ethanolic native extraction (EthaNa process).

Rapeseed is a much sought-after raw material. High-quality rapeseed oil is the most popular type of oil in German kitchens and some of the protein-rich residues that remain after the oil has been extracted are used as animal feed. However, rapeseed processing methods rely on high pressures and temperatures – resulting in denaturation of the proteins – as well as chemicals that pollute the environment and are sometimes toxic. These include hexane or special petroleum-based solvents that are used to extract the rapeseed oil. Consequently, the added-value potential of this process has been basically exhausted.


Alternative approach: mild EthaNa process

In the EthaNa project funded by the German Federal Ministry of Food and Agriculture (BMEL), under the joint coordination of Fraunhofer CBP and B+B Engineering GmbH eleven partners collaborated on investigating the novel EthaNa process and to set up a pilot plant at Fraunhofer CBP for demonstrating the entire process from the de-hulling of rapeseed and the subsequent extraction to separate the oil from the rapeseed kernels.

In comparison to the established extraction process with hexane, extraction and displacement of the oil are carried out with ethanol in the EthaNa project. This makes it possible to significantly improve the quality of the rapeseed oil and rapeseed concentrate products. In addition, the project also aims to isolate novel recoverable substances that previously could not be obtained from rapeseed, such as secondary plant constituents (sinapinic acid, tocopherols or glycosinolates) or rapeseed hulls.

De-hulling system
© Fraunhofer IGB
De-hulling system

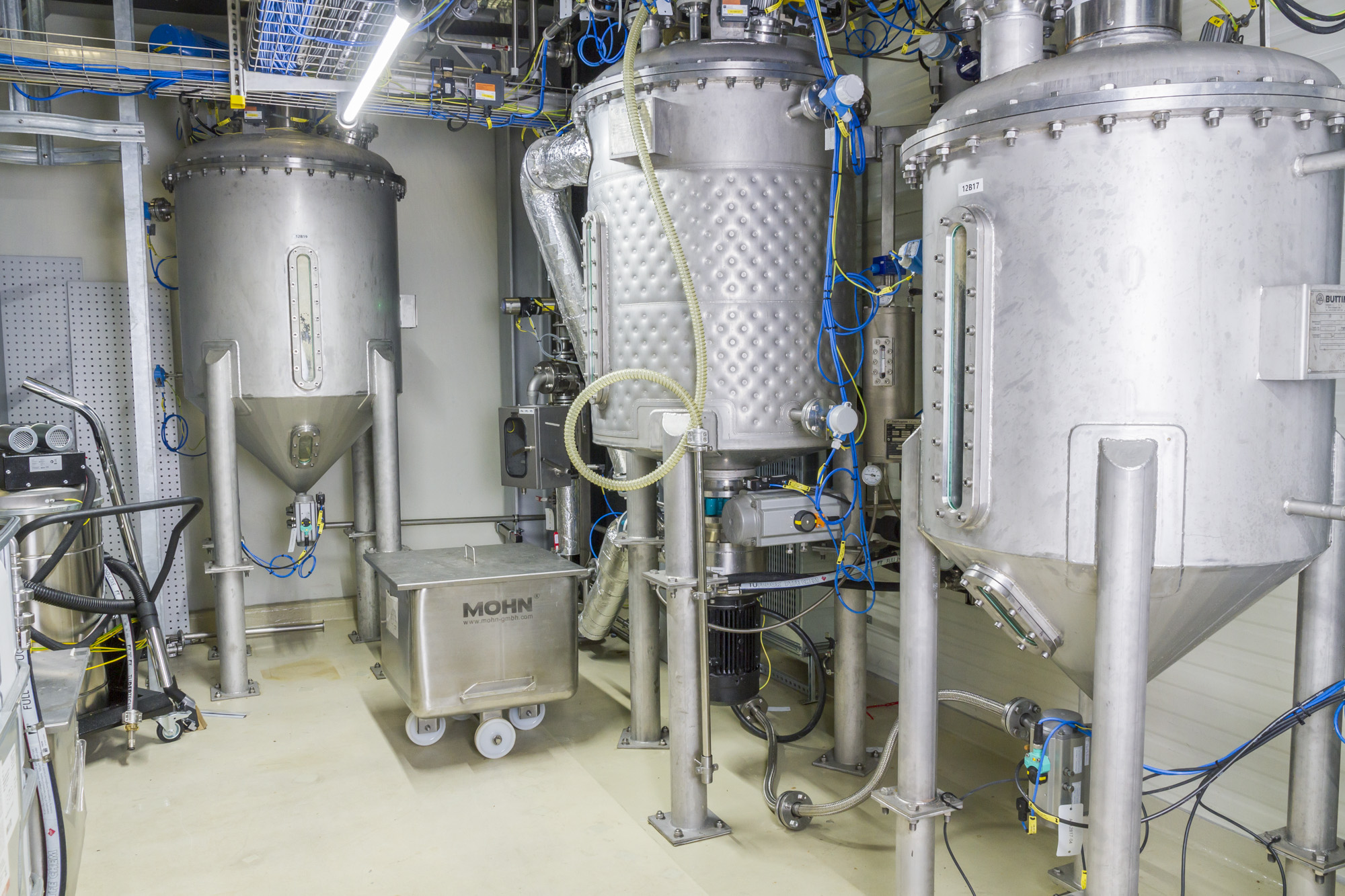

Stirrer and storage tanks for rapeseed pulping and conditioning
© Fraunhofer IGB
Stirrer and storage tanks for rapeseed pulping and conditioning

Pilot plant for a mild EthaNa process

The mild EthaNa process represents an alternative approach. It is performed at ambient pressure and temperatures of no more than 70°C, uses ethanol instead of hexane or petroleum-based solvents and is capable of processing de-hulled rapeseed. On completion of the project, in 2022, a pilot plant – consisting of a de-hulling system and an extraction system – was built and put into operation at Fraunhofer CBP in Leuna.


EthaNa: improved oil quality, valuable by-products

The research has revealed that the oil is displaced from the kernel during the EthaNa process rather than being extracted in the usual manner. Consequently, the rapeseed oil obtained in this way is of higher quality than oil produced using conventional methods. In addition, the rapeseed concentrate is rich in nutritious proteins and contains significantly fewer hulls. The hull fraction is an additional product that can, for instance, be used to manufacture insulating materials. Moreover, valuable molecules such as sinapinic acid or phospholipids dissolve in ethanol and can be used in the cosmetic or pharmaceutical industries. Strategies for separating and processing these molecules are subject of current research work.


Rapeseed concentrate with native proteins

The mild conditions of the EthaNa process lead to a rapeseed concentrate that is rich in high-quality, non-denatured proteins. Together with our partners, we are researching how this can be utilized as a source of protein for food production as part of the Like-a-Pro project that has recently been launched with the sponsorship of the EU.

In the course of the project, the EthaNa® plant is further optimized in terms of oil separation, the size of the rapeseeds is correlated with the quantity of oil released and a countercurrent process is established for ethanol extraction.

In addition, efforts are being made to establish new cooperations for expanding the range of raw materials that can be processed with the EthaNa® plant. Some promising candidates in this regard are sunflower seeds, beechnuts or residual products such as coffee grounds or hemp seeds.

Project information

Project title

EthaNa – Piloting the Ethanolic Native Extraction of Peeled Rapeseed


Project duration

September 2017 – February 2022


Project partners

  • Fraunhofer Center for Chemical-Biotechnological Processes CBP, Leuna (Germany) (Coordinator)
  • Fraunhofer Institute for Interfacial Engineering and Biotechnology IGB, Stuttgart (Germany)
  • Fraunhofer Institute for Process Engineering and Packaging IVV, Freising (Germany)
  • Karlsruhe Institute of Technology KIT, Karlsruhe (Germany)
  • Internationale Forschungsgemeinschaft Futtermitteltechnik e.V. (IFF), Braunschweig (Germany)
  • B+B engineering GmbH, Magdeburg (Germany)
  • Anhaltinische Verfahrens- und Anlagentechnik GmbH (ava GmbH), Magdeburg (Germany)
  • Miccra GmbH, Müllheim (Germany)
  • VetterTec GmbH, Kassel (Germany)
  • C. Thywissen GmbH, Neuss (Germany)
  • Technologietransfer und Innovationsförderung (tti) Magdeburg GmbH, Magdeburg (Germany)


We would like to thank the German Federal Ministry of Food, Agriculture and consumer protection and the Agency of Renewable Resources (FNR) for funding the project “EthaNa“, promotional reference n° 22400517.
