Albumin coatings

Albumin coating accelerates stem cell proliferation on titanium implants

It is known that albumin coatings greatly reduce the adhesion of bacteria to plastic or metal surfaces [1]. Fraunhofer IGB has now shown that cross-linked albumin coatings also accelerate the adhesion of stem cells to Ti6Al4V surfaces, a titanium alloy commonly used in medical technology.

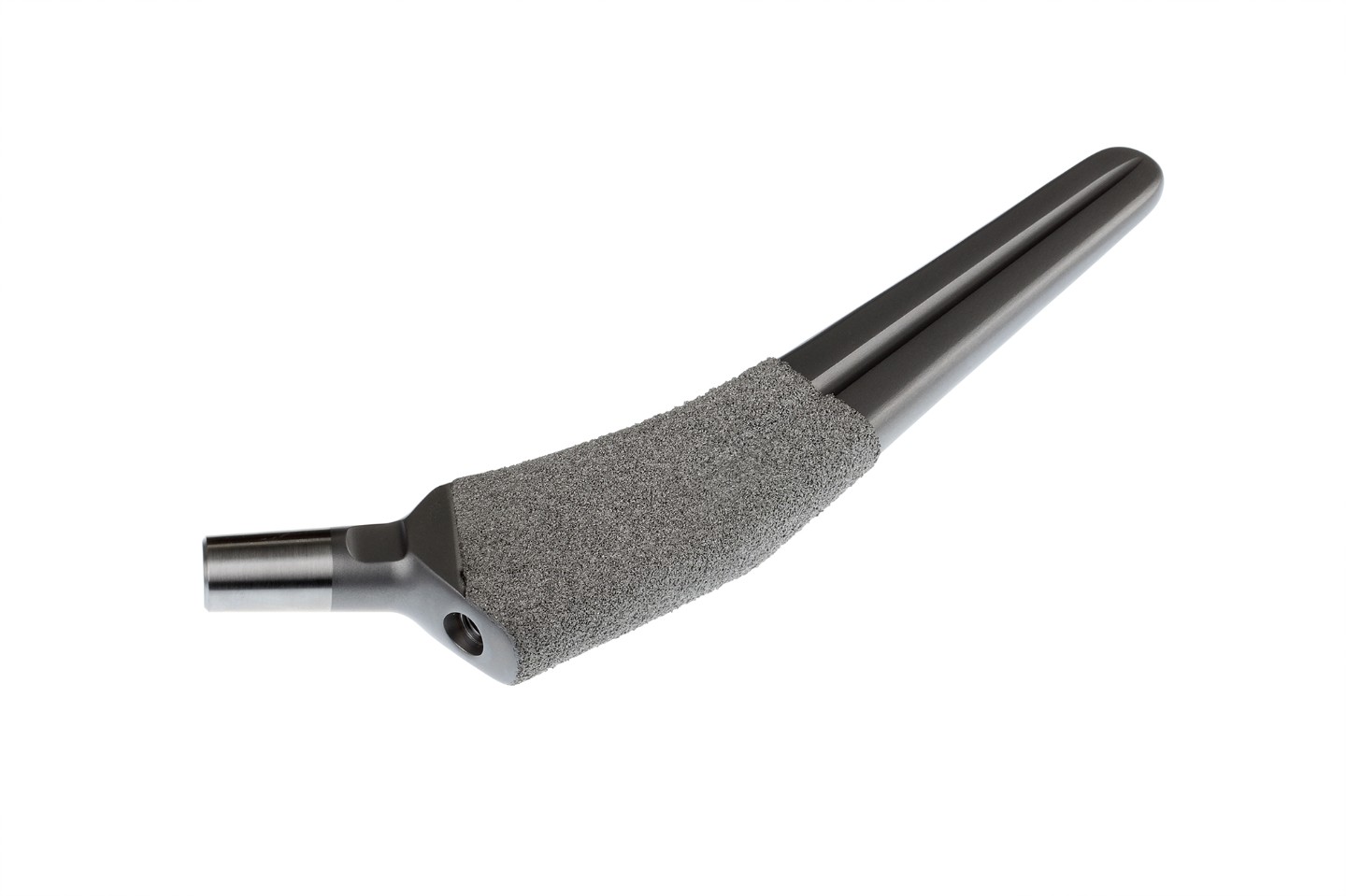

Titanium hip implant.
© LeonP/shutterstock

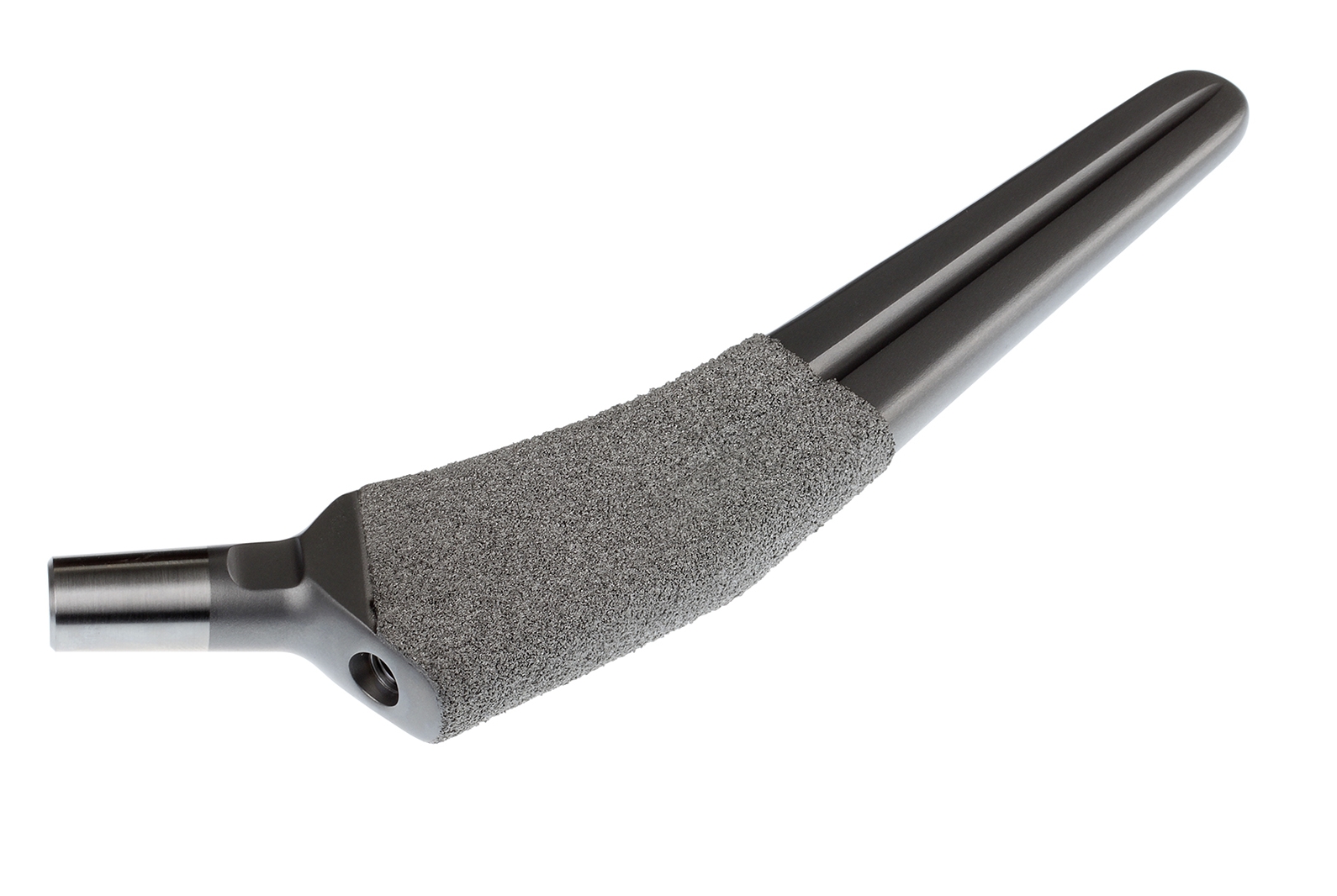

Titanium hip implant.
Early stem cell (red) adhesion on albumin coating (green) after one minute.
© Fraunhofer IGB
Early stem cell (red) adhesion on albumin coating (green) after one minute.

After just one minute, first mesenchymal stem cells (MSC, from bone marrow aspirates) adhered to the coated surfaces (Fig. 2). On the uncoated Ti6Al4V, no adherent cells were detected at this early stage. After 30 minutes, the number of cells on both surfaces was similar, although a much greater spread of the cells and thus a higher surface coverage was frequently observed on the cross-linked albumin (Fig. 2). The effect was robust and it was demonstrated on Ti6Al4V with different surface coarseness as well as on substrates produced by laser melting using Ti6Al4V powders of different qualities. The cross-linked albumin layer could be sterilized with standard sterilization methods (gamma irradiation, electron beam) without any loss of function.

The shelf life of bone implants is often limited by severe infections occurring years after implantation. These can be caused by bacteria that reach the implant surface already during implantation and survive there in the form of a biofilm.

The functionalization of the surface of Ti6Al4V alloys with cross-linked albumin can substantially shift the often cited “race to the surface” (i.e. the competition of microorganisms and tissue cells for the colonization of surfaces) greatly in favor of MSC. We are happy to introduce the developed coatings into advanced studies for medical device companies.


[1] An, Y.; Blair, B.; Martin, K.; Friedman, R. (2000) Handbook of bacterial adhesion - principles, methods, and applications. Springer Science+Business Media New York: 609-625
